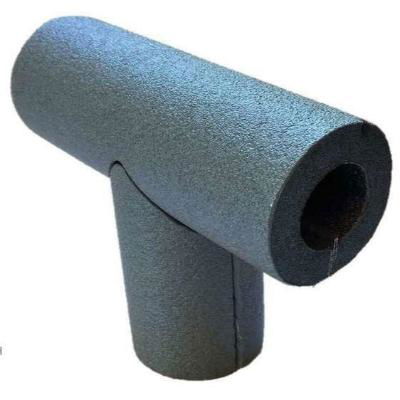

PIPE INSULATION FOR T-PIECES FROM 15MM TO 42MM INTERNAL DIAMETER.
Simply select the outer diameter of your hot water pipe or water pipe.
We will then supply you with the appropriate T-piece.
Save money and insulate your hot water pipes.
We offer you the following material for insulation:
PE-XT self-adhesive
With double-sided self-adhesive closure
High adhesive strength
Was developed according to EnEV and DIN 1988 Part 2
Technical data:
Inner dimensions: 15 to 42mm
Insulation thickness: 13mm
External dimensions: 41 to 68mm
Fire behavior: (DIN 4102) B1
Thermal conductivity: (DIN 52 613) l = 0.035 W/mK at +10°C average temperature
l = 0.040 W/mK at +40°C average temperature
Density: 45 - 80 kg/m3
Temperature range: 40°C to + 85°C
Processing temperature: above 5°C
Structure-borne sound insulation effect: (DIN 52 218) 32 dB(A)
Corrosion risk: corresponds to DIN 1988/7
Flexible round extruded and closed-cell polyethylene foam, resistant to aging and difficult to rot
The insulation does not contain any PVC components
For copper pipes, steel pipes, multilayer composite pipes and PPR pipes
Insulate pipes without the hassle of cutting! We supply the finished T-pieces.
Simply attach the insulation, peel off the adhesive strip, press together and you're done!
The processing is very easy:
After all the pipes have been laid and the lines have been checked for leaks, the pipes can be insulated. You don't have to be a professional to do this. Simply cover the straight pipes with the PE-XT (gray insulation material). The self-adhesive seams eliminate the annoying need to apply glue. Once the right position has been found, simply peel off the protective film and place both edges on top of each other. It will stick perfectly. Thanks to our angle solution, the corners are just as easy to insulate as the straight pieces. Simply put them in place, check the fit, peel off the film, press on and the angle is in place.
We recommend:
Due to press tolerances and small overhangs, it may be necessary to choose larger diameters for systems such as those from Viega, Sudo, Mapress, C-Press and others. To do this, please measure the thickest part of the angle. The insulation is usually bought one size larger. For example: If you have pipes with a diameter of 15mm, then choose an angle with a diameter of 18mm for the bends. Straight pipes are not affected by this rule. In these cases, you can also choose 15mm insulation for a 15mm pipe.
